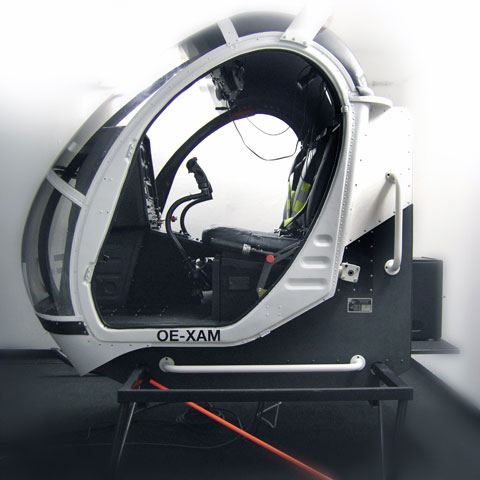

Schweizer 300 Flight Deck Flight Deck Scale 1:1

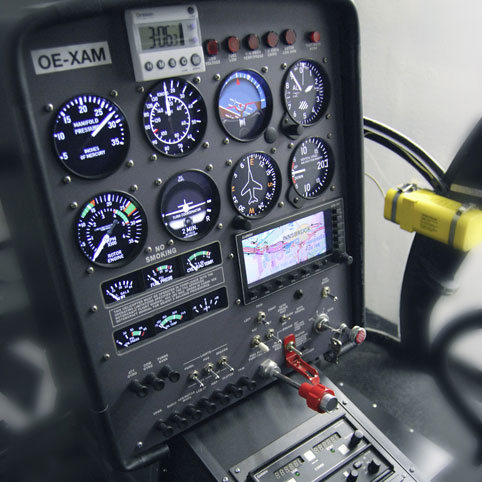

• Replica Schweizer 300 Main Instrument Panel (MPI), Mode Control Panel (MCP), highly accurate in size and text placement with accurate switches and knobs.
• Replica Schweizer 300 interior trim pieces, highly accurate in size and shape to give the cockpit a realistic look
• Replica Schweizer 300 Collective and Cyclic.
• Replica Schweizer 300 Rudder pedals
• Replica Schweizer 300 Pilots seats
• Intercom system for communications between pilots, observer and instructor (optional)
• Replica Schweizer 300 flight instruments, avionics an mechanics: Keylock Starter (original 5-positions off, right, left, on and start) Vertical Speed Indicator Attidute Indicator Airspeed Indicator Engine / Rotor RPM Altimeter Heading Indicator Manifold Pressure Indicator Carburator Air Temperature Indicator Fuel 1 Indicator Fuel 2 Indicator Amps Indicator Oil Press Indicator Digital Clock KX155A NAV/COM Transponder VOR Wet Compass
• High Definition Sound
• Professional Software Licensing





Visual System and Databases

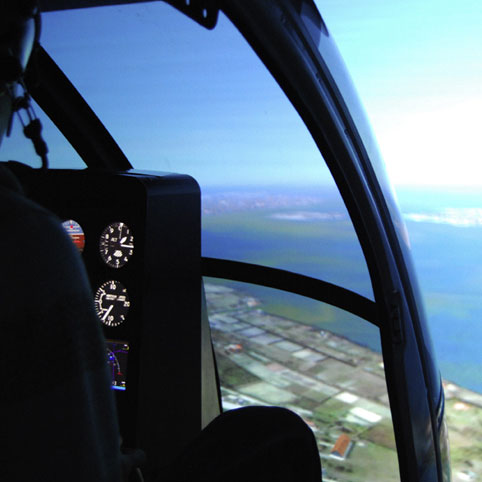

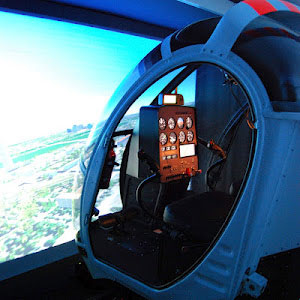

Three overhead projectors to create the high definition visual environment that simulates frontal and side window visual effects.

180 degree horizontal and 30 degree vertical, curved, movie-quality projector screen and frame or LED Tile displays

Structure for projector support, customizable airports, scenery and navigation database

Instructor Station enclosure

Instructor desk, two 20” flat panel touch monitors Intuitive Instructor Operating Station software capable of several remote functions, positioning, failures, weather changes, training scenarios, monitoring, TCAS management, systems changes, etc.
